Specs

Post Size: 150x150x2mm
180X40X1.2mm louvred blades with inbuilt sealing strips
Beam Size 174mmX40mmX1.6mm
Wind Rating (Given European EN 13561 Certification) of 180 – 200km/h *Based on size

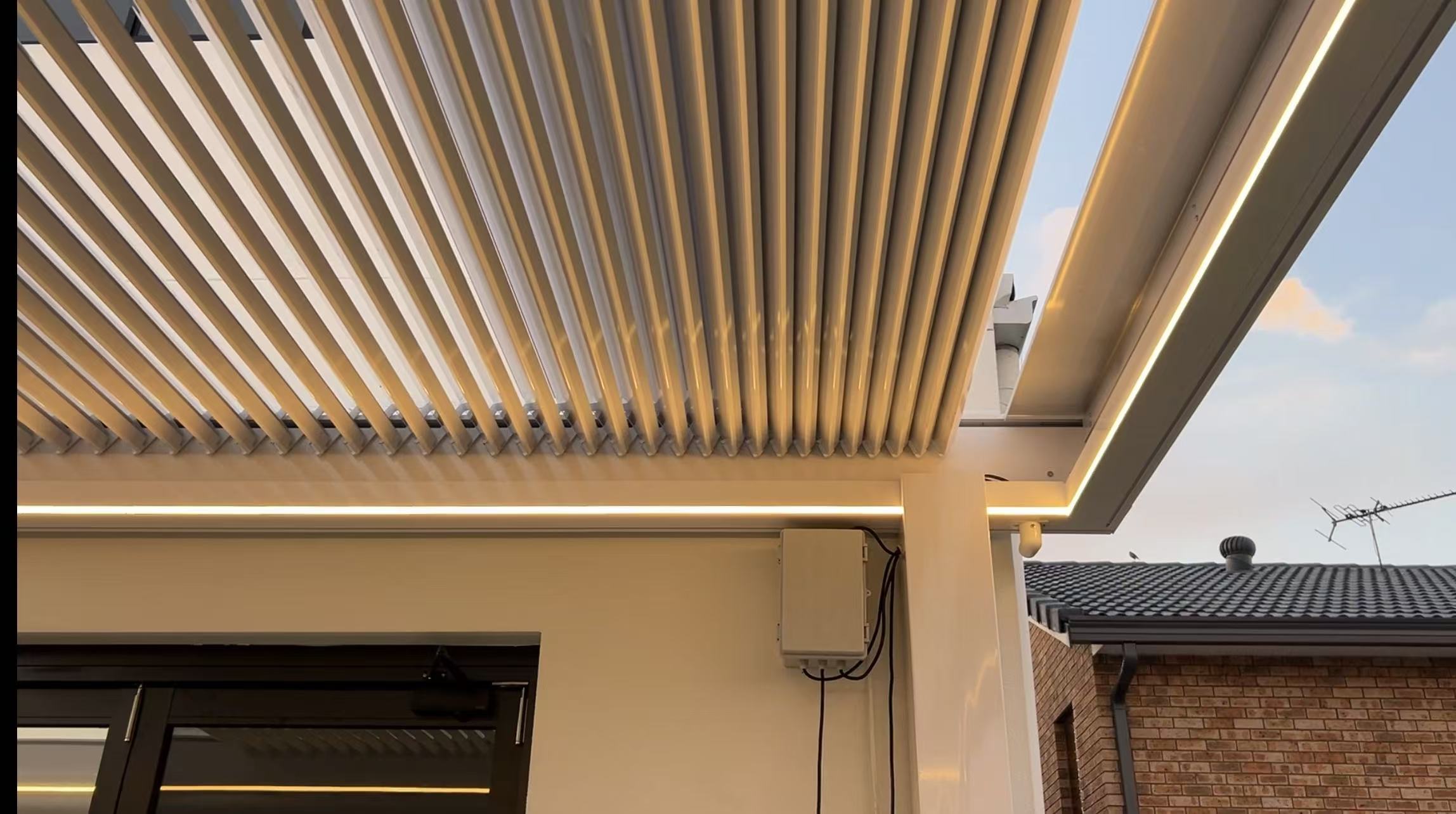

0-90 degrees of louver opening
High-strength 6063-T5 Aluminium Construction
100% IP67 Waterproof design with rubber gaskets on each individual blade to ensure leak proof seal
304 Grade stainless steel hardware & accessories included

Motor Specs

Brand: A-Ok Silent
Rated Power: 40w
Rated Voltage: DC 24V
IP Class: IP67
Connection Type: Hardwire

Features

SkyFlex Standard 150x2mm sturdy posts used.

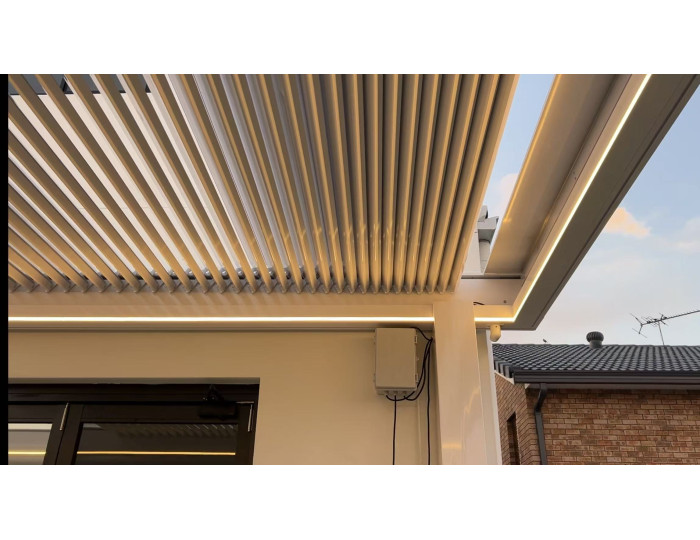

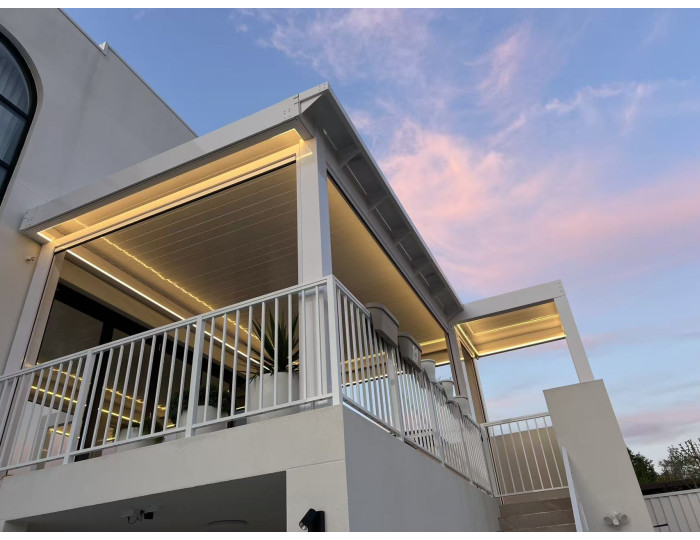

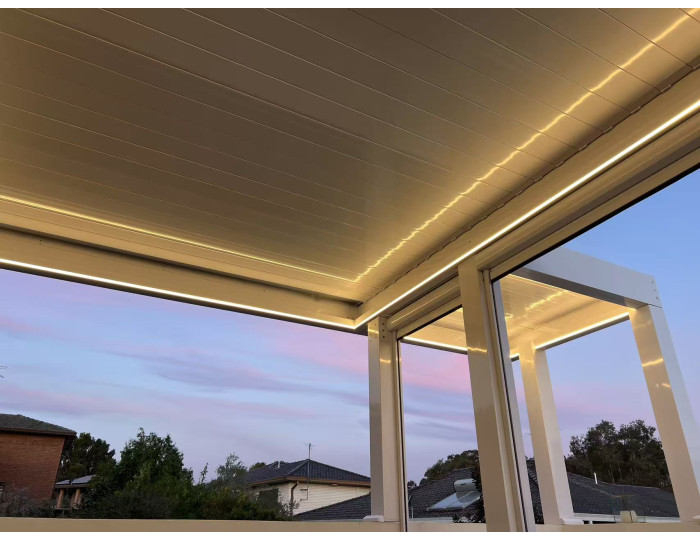

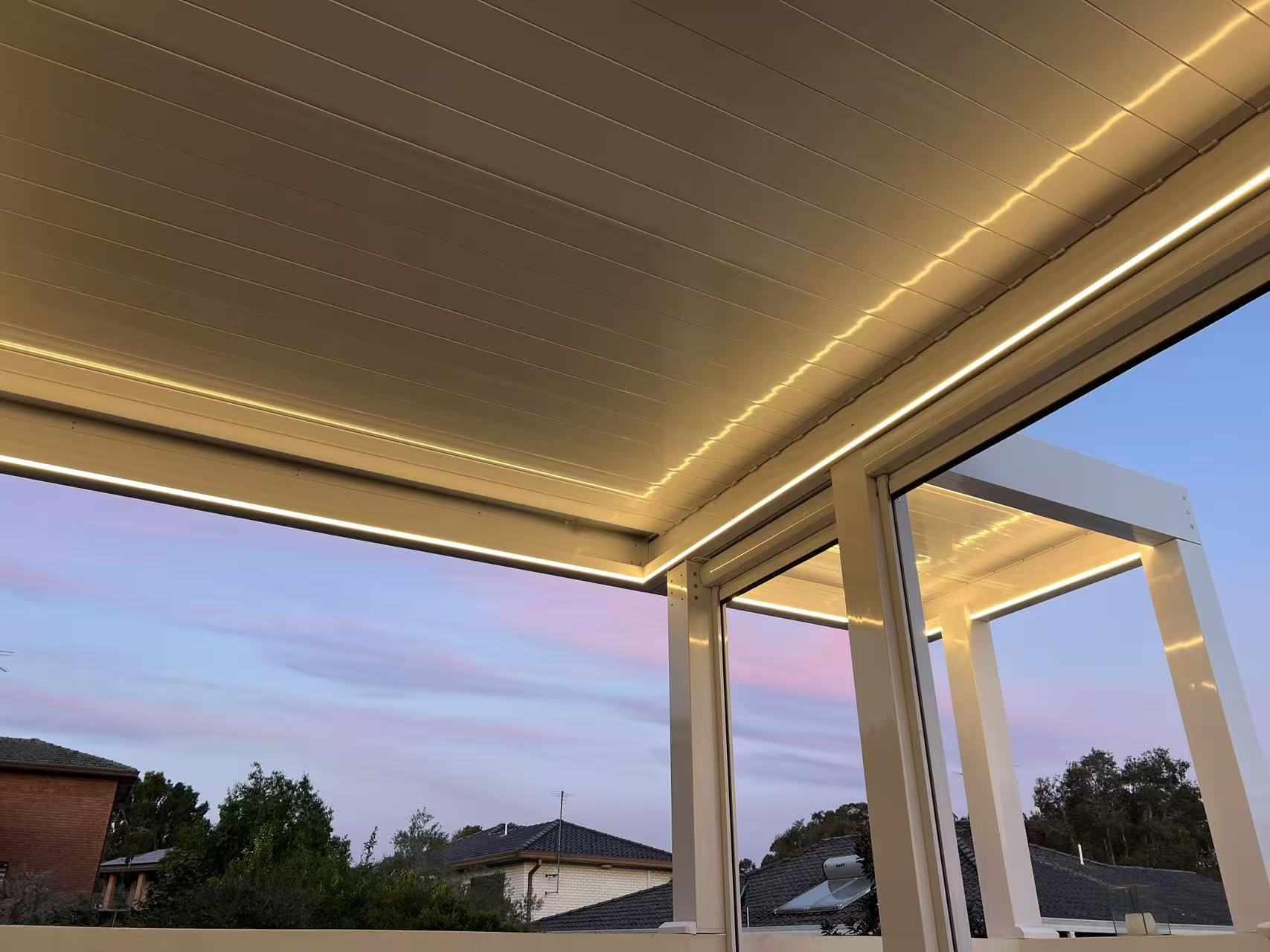

Warm 4000k Led Perimeter Ambient Lighting
SkyFlex Unique to market complete open to sky system including both 90 degree rotation & complete slide back functionality with up to 70% open to sky coverage.
Maintenance-free construction using AAMA 2604 powder-coated aluminium for long lasting finish
IP67 Waterproof design with rubber gaskets on each individual blade to ensure leak proof seal

Flexible design & configuration

Our SkyFlex Pergolas are customizable and designed to fit into your backyard space. Our range of adjustable roofing systems can be incorporated into a range of different structures to complement existing buildings or simply be freestanding.
SkyFlex Louvered Roofs are fitted with modern architectural fixtures allowing seamless integration into any home structure.

Installation Instructions

Installation Instructions: SkyFlex Delta Open Sky

Watch video

Delta Midrange

Delta Midrange Extended

Warranty

15-year structure warranty & 5-year motor & electrical accessories warranty*

Installation

Our business is based on selling wholesale products at wholesale prices, all our pergolas are designed to be DIY with labelling on all parts to provide a smooth installation experience. Although should you need assistance, we have partner trade installers that can assist you. We have Carpenters through to Registered Builders that can install, Prices range from $800 (Basic) – $5000 (Complex). Please contact us if you wish to be put in touch with our trades.

Comparison Chart

Specification	Delta Motorised (Mid-Range)Model 163 – 3x3x2.7 & 4x4x2.7	Delta Motorised (Mid-Range) Model 175 – 3x5x2.7	Delta Motorised (Mid-Range) Model 220 – 3x6x2.7	Delta Motorised (Mid-Range) Model 180
Wind Rating	Design reference: 110 km/h wind actual performance depends on size, layout, anchoring and site conditions.	Design reference: 110 km/h wind actual performance depends on size, layout, anchoring and site conditions.	Design reference: 110 km/h wind actual performance depends on size, layout, anchoring and site conditions.	Design reference: 110 km/h wind actual performance depends on size, layout, anchoring and site conditions.
Post Size	120 × 120 × 1.4 mm	150 × 150 × 2.0 mm Optional: 180 × 180 × 2.2 mm	150 × 150 × 2.0 mm Optional: 180 × 180 × 2.2 mm	150 × 150 × 2.0 mm Optional: 180 × 180 × 2.2 mm
Blade Size	Single-wall curved: 163 × 33.3 × 1.0 mm Double-wall bevelled: 163 × 32 × 1.0 mm Double-wall flat: 163 × 35.3 × 1.25 mm	175 × 40 × 1.5 mm	220 × 55 × 1.5 mm	181 × 40 × 1.2 mm
Beam Size	Beam & gutter assembly: 152 × 90 × 1.5 mm	Beam: 175 × 40 × 1.6 mm Gutter: 55 × 82 × 1.5 mm	Beam: 280 × 46.8 × 2.0 mm Gutter: 80 × 73.15 × 1.5 mm	Beam: 175 × 40 × 1.8 mm Guide beam: 173 × 40 × 1.6 mm Gutter: 82 × 55 × 1.4 mm
Framework (Aluminium Thickness)	6063-T5 aluminium; key profile thicknesses 1.0–1.5 mm	6063-T5 aluminium; key profile thicknesses 1.5–2.0 mm Optional post: 2.2 mm	6063-T5 aluminium; key profile thicknesses 1.5–2.0 mm Optional post: 2.2 mm	Powder-coated aluminium; key profile thicknesses 1.2–2.0 mm
Louver	3 profiles: single-wall curved; double-wall bevelled; double-wall flat	Double-wall tilting aluminium louver; manual or motorised	Double-wall tilting aluminium louver; manual or motorised	Retractable folding aluminium louver; motorised
Ambient Beam & Slat Lighting	Motorised flat-louver option: perimeter gutter lighting + selected louvers with integrated LEDs	perimeter gutter lighting + selected louvers with integrated LEDs	perimeter gutter lighting + selected louvers with integrated LEDs	perimeter gutter lighting only
Smart Phone Control	No	Optional – Smart Phone Control via Smart Life App using an optional IR+RF smart controller (Wi-Fi/BLE connected), compatible with A-OK RF motor systems.	Optional – Smart Phone Control via Smart Life App using an optional IR+RF smart controller (Wi-Fi/BLE connected), compatible with A-OK RF motor systems.	Not currently available
Standard Colour (Finish Matt/Satin)	Dark Grey / White / Brown / Black Powder-coated	Dark Grey / White / Brown / Black Custom colours available; powder-coated	Dark Grey / White / Brown / Black Custom colours available; powder-coated	Dark Grey / White / Brown / Black Custom colours available; powder-coated
Warranty	15-year structure warranty & 5-year motor & electrical accessories warranty*	15-year structure warranty & 5-year motor & electrical accessories warranty*	15-year structure warranty & 5-year motor & electrical accessories warranty*	15-year structure warranty & 5-year motor & electrical accessories warranty*
Opening Angle	90°	90°	90°	N/A – retractable folding roof; adjustable intermediate positions; approx. 2/3 clear opening when fully retracted
Rain Protection	Closed louvers + integrated drainage through gutters and posts	Closed louvers + integrated drainage through gutters and posts	Closed louvers + integrated drainage through gutters and posts	When closed, louvers direct rainwater to perimeter gutters and discharge through posts
Options	Fixed sizes; 3 louver profiles; manual or motorised; lighting on motorised flat-louver version; ZIP screens; RGB lighting	Custom sizes; 150/180 mm posts; decorative eave/post cladding; ZIP screens; sliding glass doors; post lights/ceiling fan; sensors; smart controls; heaters; RGB lighting	Custom sizes; 150/180 mm posts; decorative eave/post cladding; ZIP screens; sliding glass doors; post lights/ceiling fan; sensors; smart controls; heaters; RGB lighting	Freestanding or wall-mounted; enlarged beams/louvers; multi-bay/custom dimensions subject to technical review

Side Wall Coverings Options

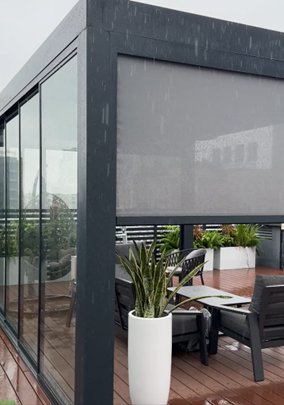

1. Glass Sliding Wall

Timeless Elegance. Ultimate Protection.

Upgrade your pergola with SkyFlex Glass Walls—a modern, durable solution for year-round comfort. Designed to provide shelter from wind and rain while preserving a bright, open feel, they enhance both functionality and style.

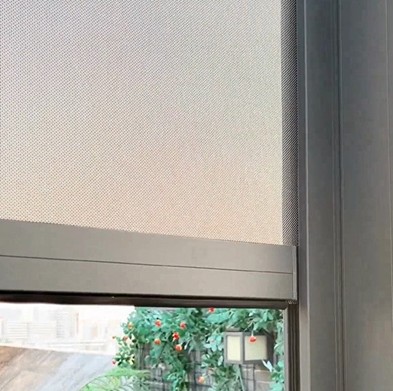

2. Motorised ZIP Screen

Sun & Weather Privacy. Ultimate Protection.

The robust ZIP guidance system secures the textile net along the pergola columns, like a zipper. This ensures smooth operation and extra stability. providing stepless height-adjustable protection against sun, wind, UV rays, and insects — while also enhancing privacy in your outdoor space.

Terms & Conditions

We are a wholesale warehouse usually catered towards installers trade builders and architects; all our products may not be available on display at our showroom please confirm the product with us. This keeps our product costs as low as possible for our clients.
We do not offer installation, although we can put you onto external trade people that can help with this.
All sales are final, we do not offer exchanges or refunds for non-fitting items or change of mind, it is up to the customer to make sure the dimensions & product will work in their space.
Warranty claims and replacement parts are all available through us, depending on the product and location of the product (State, Suburb, Etc) a tech may not be available from us to replace the defective part, in this instance the customer will be provided with the replacement part or product with instructions to install or repair it.
Modifications/Adaptions to our product, Any modifications (Cutting, Adding, Modifying) may trigger a warranty void, If this is the case we will assess the modification and make a judgment if it has affected the products operation in anyway and make a judgement based on case-by-case base.
Shipping & Pickup we encourage pickup of all our items, although when not available or suitable we can arrange delivery through our third-party couriers, we are not liable for any damages caused via shipping or pickup, all our items are checked and are sold brand new through our warehouse, any external damages will need to be taken up directly with the shipping company as they take on all responsibility.

Shipping and Production

We only hold stock of our Light Model pergola, everything else is made to order. From approval to delivery please expect a 2.5 to 3 month delivery time.

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “Delta Open Sky Motorised Aluminium Louvred Pergola (Mid-Range Model)”

You must be logged in to post a review.

SKU: N/A

Delta Open Sky Motorised Aluminium Louvred Pergola (Mid-Range Model)

Name: Delta Open Sky Motorised Aluminium Louvred Pergola (Mid-Range Model)
SKU: 286
Availability: BackOrder

(0) + Leave A Review

Price

~~$16,200.00-$24,150.00~~ (Supplied - Wholesale Pricing) Save 44%

Description

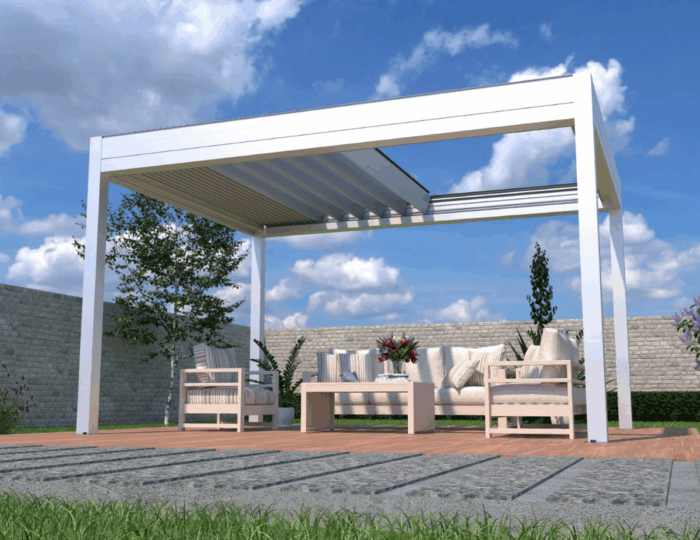

Introducing the premium Delta Open Sky Motorised louvred pergola our highest end offering. Meticulously crafted to elevate your outdoor space, the Delta presents a contemporary twist on traditional pergolas with its completely openable louvers leaving you with an obstruction free view to the sky!

This unique capability provides versatility that is second to none, allowing you to open the roof completely for a stunning view of the sky or close it, partially or fully, creating the perfect atmosphere tailored to your needs.Unlike traditional designs, our innovative pergola offers both tilting and sliding options, granting you complete control over your outdoor oasis. Enjoy the beauty and freedom of outdoor living like never before, with a louvre roof pergola that’s designed to stand the test of time. The Delta Open Sky can be fully customised to suit your needs!

*Due to shipping fluctuations in current market for oversized goods, The website pricing should be used as a guide only and subject to change.

Colour

Size

Clear

Request a Custom Quote - Contact Us

Pay Deposit

Pay a deposit of 50% per item
